$5799 500Wh Battery  $6499 1000Wh Battery



GENERAL INFO
SPEEDS:

1 x 10
WEIGHT:
33.58 kg (74 lb)
GEAR INCHES:
26" - 99" (2.08 - 7.91 m)
FOLDING SIZE:
176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
FOLDING TIME:
5 sec
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
49 - 59 cm (19.3 - 23.2 in)
DISTANCE: SADDLE TO PEDAL:
69 - 105 cm (27.2 - 41.3 in)
SUGGESTED RIDER HEIGHT:
150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
200 kg (440.9 lb)
MAX RIDER WEIGHT:
120 kg (264.6 lb)

FRAME
FRAME:

Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
FORK:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

COCKPIT

HANDLEPOST:

Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm

STEM:

Tern Andros, adjustable, forged construction, patented technology

HEADSET:

Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated

HANDLEBAR:

Tern Sweep, 6061-AL, Tern Andros adapted

GRIPS/BAR TAPE:

Ergon

SADDLE:

Tern GSD by Velo, with rear handle

SEATPOST:

Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm

SEATPOST CLAMP:

Tern Collar, 6061-AL, 2pc

BRAKES

FRONT BRAKE:

Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads

REAR BRAKE:

Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads

BRAKE LEVERS:

Magura MT5 e-stop, hydraulic, with brake sensor

BRAKE CABLE & HOUSING:

Magura, hydraulic

WHEELS

FRONT WHEEL:

Tern Atlas, heavy duty cargo wheel

REAR WHEEL:

Tern Atlas, heavy duty cargo wheel

FRONT HUB:

Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing

REAR HUB:

Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design

SPOKES AND NIPPLES:

Stainless steel, 13G

RIMS:

Tern Atlas, ultra wide 36 mm, dual reinforced joint

TIRES:

F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

TRANSMISSION
SHIFTER(S):

Shimano Deore, 1 x 10 spd
REAR DERAILLEUR:
Shimano Deore Shadow+
CRANKSET:
Tern GSD custom, forged 6061-AL DH crankarm
CASSETTE/FREEWHEEL:
Shimano 11-36T, 10 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS:
Urban with non-slip surface, sealed bearings
SHIFTER CABLE & HOUSING:
Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

MOTOR:

Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

BATTERY:

Bosch Dual Battery system, 500 Wh/1000 Wh

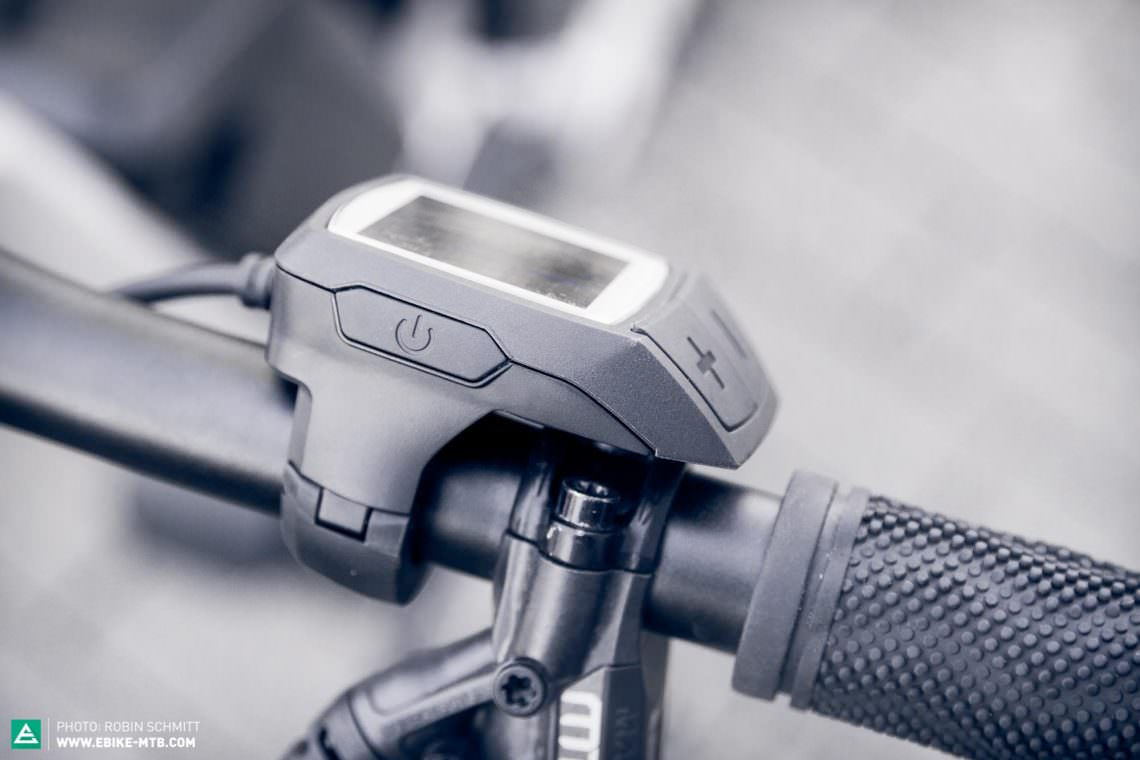

DISPLAY:

Bosch Purion

RANGE:

500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi)

CHARGER:

220V, 4A (EU); 100-240V, 4A (US)

BELLS & WHISTLES

BELL:

Pitch Plus, brass

CHAINGUARD:

Tern Custom, full chain cover

KICKSTAND:

Atlas Lockstand, w/ remote unlock, patented technology

LUGGAGE SOCKET:

Combo Mount

FRONT LIGHT:

Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

REAR LIGHT:

RearStop Brake Light, Always on brake light

FENDERS:

Integrated Wheel Guard, AL6061, w/ Side Skirt

RACK(S):

Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)

ACCESSORY:

ABUS, keyed-alike with Bosch battery

Tern GSD S10 LX

$5,799.99Price
